Cookies
Cookies

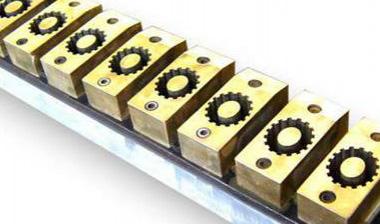

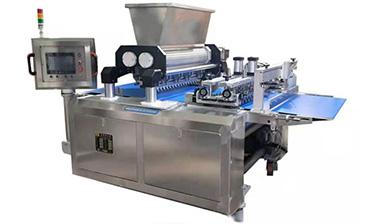

Wire-cut cookies
Cookies
Cookies
Cookies
Gold Fish Biscuit
650 Horizontal dough mixer

S type paddle, mixing 375kg flour per time (650kg dough)

Function:

650 Horizontal mixer is suitable for hard dough (hard biscuit production) and soft dough (soft biscuit production).

Features:
  • All functions can be controlled by touch screen.
  • Multi-speed mixing can fulfill optimal mixing requirement.
  • Jacket water circulation heating provide suitable mixing temperature under different circumstance.
  • Inverter+PLC soft start reduce Energy consumption and extend service life.

Rotary Moulder

Features:
  • 3 driving force (feeding roller, mould, canvas belt).
  • Adjustabl angle between canvas belt and mould.
  • Scraper can be adjusted up and down with different angle.
  • Great adaptation for wide range of dough, like making large biscuit, very hard dough and very soft sticky dough.

Salt/Sugar Sprinkler (full stainless steel)

Function

To sprinkle sugar or salt on the dough pieces before baking, using rotary brush roller.

Features:
  • Sprinkle salt/ sugar evenly.
  • Independent design, easy to move, clean and maintain.
  • By adopting mesh belt type instead of PU belt, it does better in ingredient recycle, avoid ingredient squander, easy cleaning.
  • Adopt 316stainless steel hopper, 304stainless steel Bearing, screw, nut, roller, axle, adjusting base and driving wheel to ensure clean and sanitary, no rust.

Entrance Transfer Machine

Features:Please refer to picture above.
  • In trial running stage or oven pre-heat stage, while oven running and no dough pieces come, pneumatically lift rear part to avoid heating from oven mesh belt so as to extend PU belt working life.
  • In trial running stage, pneumatic retract front part for easily retrieve dough pieces, avoid squander while them go into oven.
  • PU belt adopt pneumatic tension and loose, can be release in loose status in day end.

Hybrid Gas Oven

Oven sections:

4 functional temperature zones
Dough leavening-dough shaping-dough dehydration-coloring
The first and second temperature zones: direct fired temperature zone
The third and forth temperature zone: hot air convection

Features:
  • The hybrid gas oven can be controlled by human-computer interface.
  • The ignitron can be selected manually so that the flame size can be adjusted according to products.
  • It adopts DC motor as the power unit during power outages.
  • The mesh belt adopts pneumatic deviation rectifier.

Adjustable Hot Wind Convection Baking Oven (Electrical)

  • 4 temperature zones
  • PID+PLC temperature control system
  • The air exhausters for each temperature zone can realize variable speed adjustment.
  • It adopts DC motor as the power unit during power outages.
  • The mesh belt adopts pneumatic deviation rectifier.

According to the factory conditions, there are four kinds of cooling conveying methods.

Straight Line Type Cooling Conveyor

Straight Line Type Cooling Conveyor

Clip-Type Cooling Conveyor

Clip-Type Cooling Conveyor

Overhead Type Cooling Conveyor

Overhead Type Cooling Conveyor

Z-Type Cooling Conveyor

Z-Type Cooling Conveyor

Rotary Stacker

Penny stacker

Vertical packing machine

PLC and HMI

The human-machine interface (HMI) can realize programmable logic control (PLC). The information can be displayed on the screen intensively. The workers can operate the machine via the touch screen and they have the access to biscuit formula at any time. The formula proportion of each kind of biscuit is different from each other, so the processing parameters of the machine are different as well. After making one kind of biscuit, the data can be recorded. You can choose the data directly without machine adjusting when making this biscuit again. The production line consists of many single machines, the data of all the machine units can be showed on one screen intensively with PLC control. By setting of the parameters, the machine can be easily controlled.

These are the main brands of the units used for the whole production line, including the system accessories of PLC and HMI. These are all international brands.
